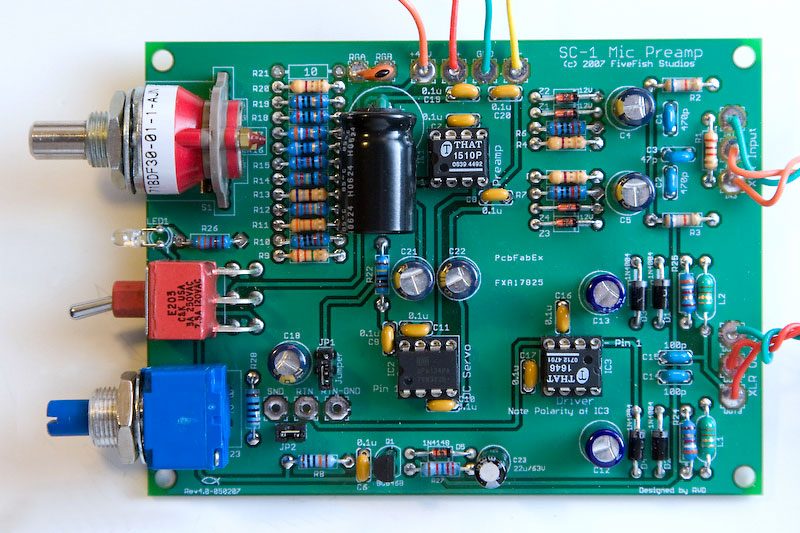

of a finished SC-1 mic
preamp kit! (Note: XLR
jacks and wires shown on picture not included in
the kit.)
 Features:
- Low-Noise, transformerless, High-Quality Mic
Preamp
- All solid-state design, using chipsets from
THAT Corp and Burr-Brown
- Soft-start, slow ramp-on +48V phantom power
- Crystal clear Red LED indicator for phantom
power
- Electronically balanced input and output stages
- 12-position Grayhill gain selector switch
- Gain range from +6 to +72dB, in 6dB increments
- Input RFI protection
- Input clamping protection
- Output surge protection circuit
- Output RFI protection
... read more...
Listen
to Audio/Demo Sound clips!
Download
PDF file of Assembly Guide/Kit Instructions
Related
products like the PSU-1848 Power Supply Kit, Power
Transformer Kit, Power Control Kit are also available
for sale. Click here. |
|
NEW!!! SC-1
Mic Preamp Kit
The
SC-1 Mic Preamp is a THAT 1510/1512/SSM2017/SSM2019/INA217
based Mic preamp with phantom power,
DC servo and Balanced line output
driver.
Rev.4
PCB Design for the SC-1 Preamp.
Introduction
The
THAT 1510 is a high performance audio
preamplifier suitable for use in
microphone preamp application. It
is pin compatible with the now discontinued,
Analog Devices SSM2019 and SSM2017
IC chips, and the Texas Instruments
INA217 and INA163 mic preamp chips.
Designed
from the ground up in THAT’s
complementary dielectric isolation
process and including laser-trimmed
Si-Chrome thin film resistors,
the THAT 1510 improve on existing
integrated microphone preamps
by offering lower noise at low
gains, wider bandwidth, higher
slew rate, lower distortion,
and lower supply current. The
parts feature internal ESD overload
protection on all critical pins.
In
short, the THAT 1510 provide
superior performance in a popular
format at an affordable price.
|
|
Features
* Low Noise:
1 nV/ ÖHz input noise (60dB gain)
34 nV/ ÖHz input noise (0dB gain) (1512)
* Low THD+N (full audio bandwidth):
0.0005% < 40dB gain
0.005% @ 60dB gain
* Low Current: 6 mA
* Wide Bandwidth: 7MHz @ G=100
* High Slew Rate: 19 V/µs
* Wide Output Swing: ±13.3V on ±15V supplies
* Gain adjustable from 0 to >60dB with
one external resistor
* Industry-standard pinouts

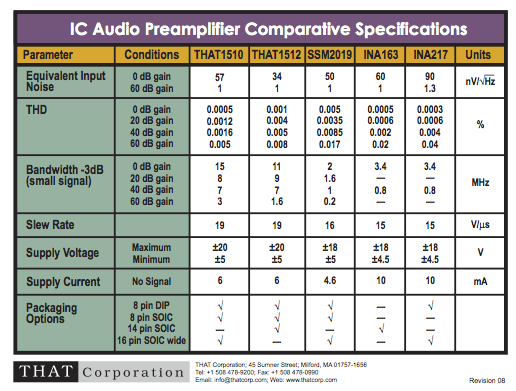

Comparison
between THAT, SSM and INA mic preamp chips
Design
Goals
The goal is to provide a great performing and nice sounding
mic preamp that's reasonable or cheaper in cost compared
to commercial ready-made, preamp units.
It
will be in kit form. This gives the user the
chance to build the preamp themselves and use their imagination
and creativity in housing this preamp in it's own custom
case.
- Simple, Great Performing, Quiet, High-Quality Mic Preamp
- with 48V phantom power
- LED indicator for phantom power
- powered by 18-0-18 Volts supply, with +48VDC for phantom
power
- balanced output
- 12-position gain selector switch
- hook-up points for optional Trim potentiometer
- hook-up points for use of a potentiometer for gain control
instead of the 12-position gain selector switch
- 0 to 66dB gain in 6dB increments
- input clamping protection
- output surge protection circuit
- output RFI protection
Future Planned Features:
- -10dB pad switch
- phase switch
- Trim potentiometer, PCB mounted
- VU meter
Next Page
|
