The
compressor is cloned/based from an
old SSL4044E desk, dating back from
'85. The SSL mixbus compressor is
an integral part of the mixer's main
quad fader and autofade system -
cards 82E26 and 82E27.
I
found a shop here in Nashville selling
Gyraf gear. They're selling something
called the SSL compressor. Could
they have the same innards? http://primalgear.com/gy40sslstco.html Their
Gyraf SSL compressor is selling for
$2,500!

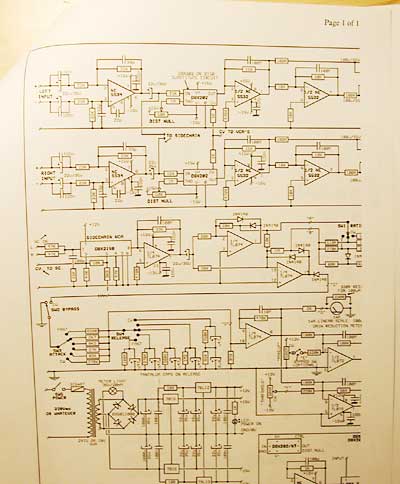

The
circuit uses opamps to achieve balanced
outputs... I'm going to add transformers
too to impart some flava!

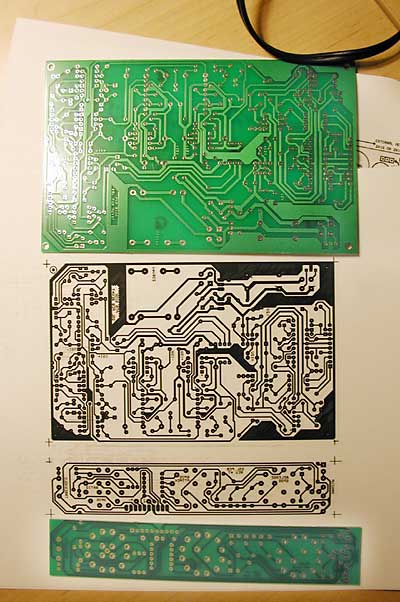

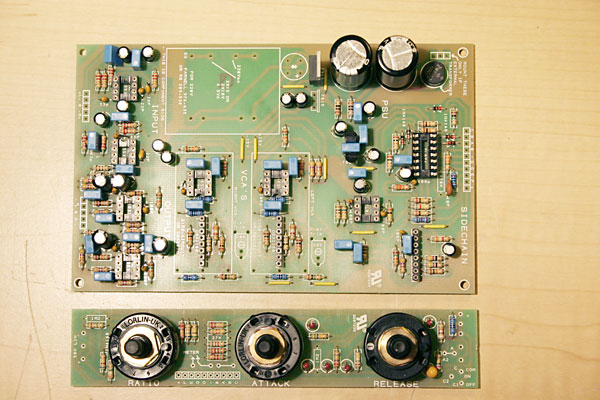

Shots
of my PCB with 99% of the components
stuffed. I'm missing a few resistors
and trimmers and one voltage regulator.
I
still have a few missing parts, so
I ordered a few resistors from digikey.com.

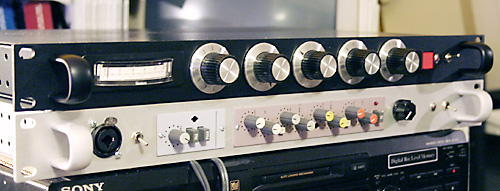

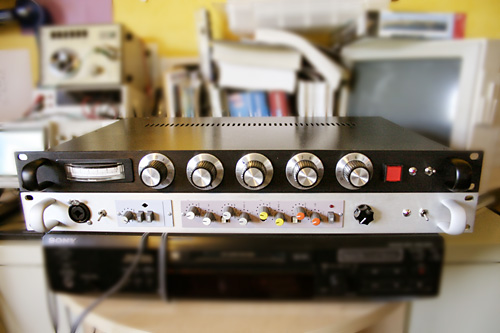

Then it's time to rack this baby.
|
